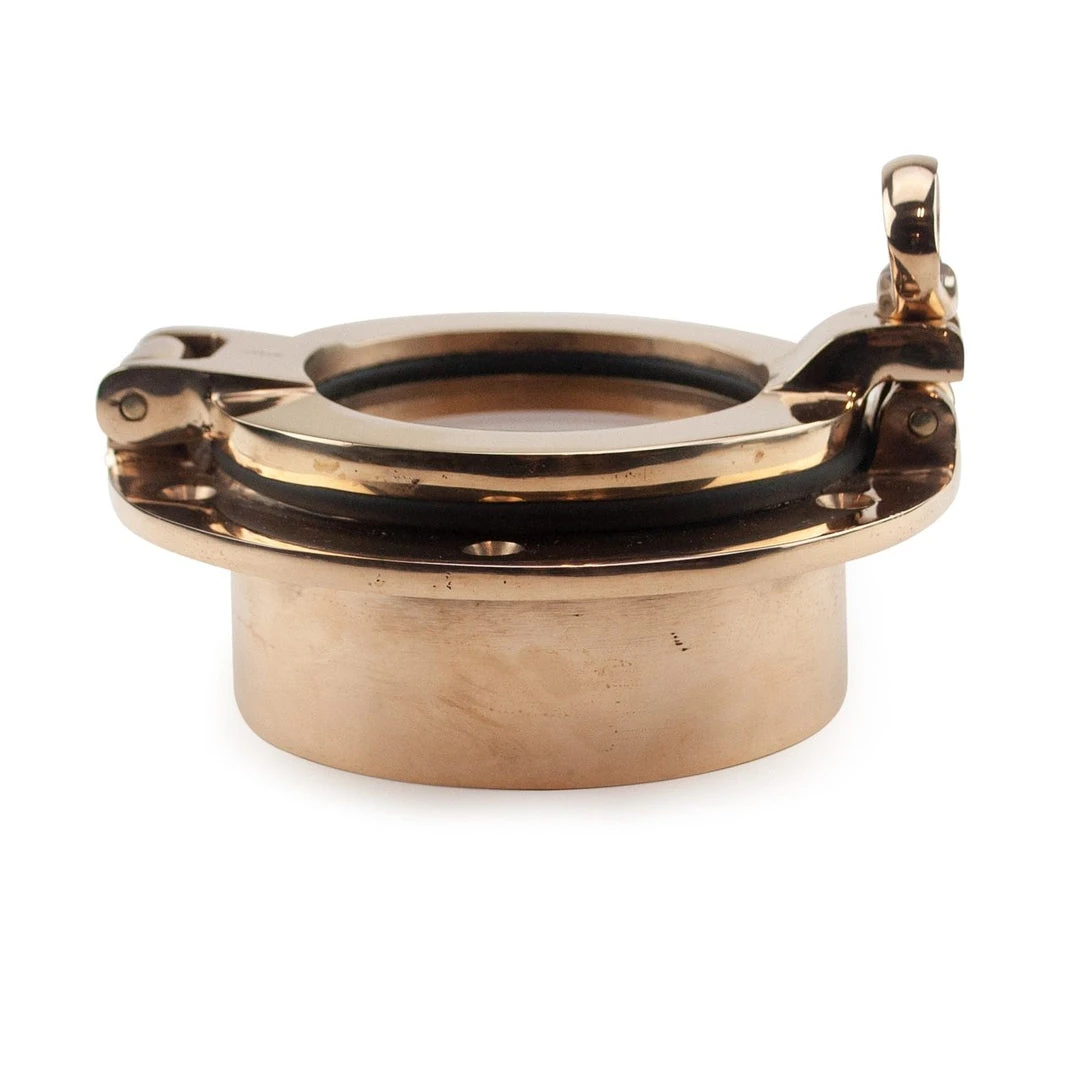

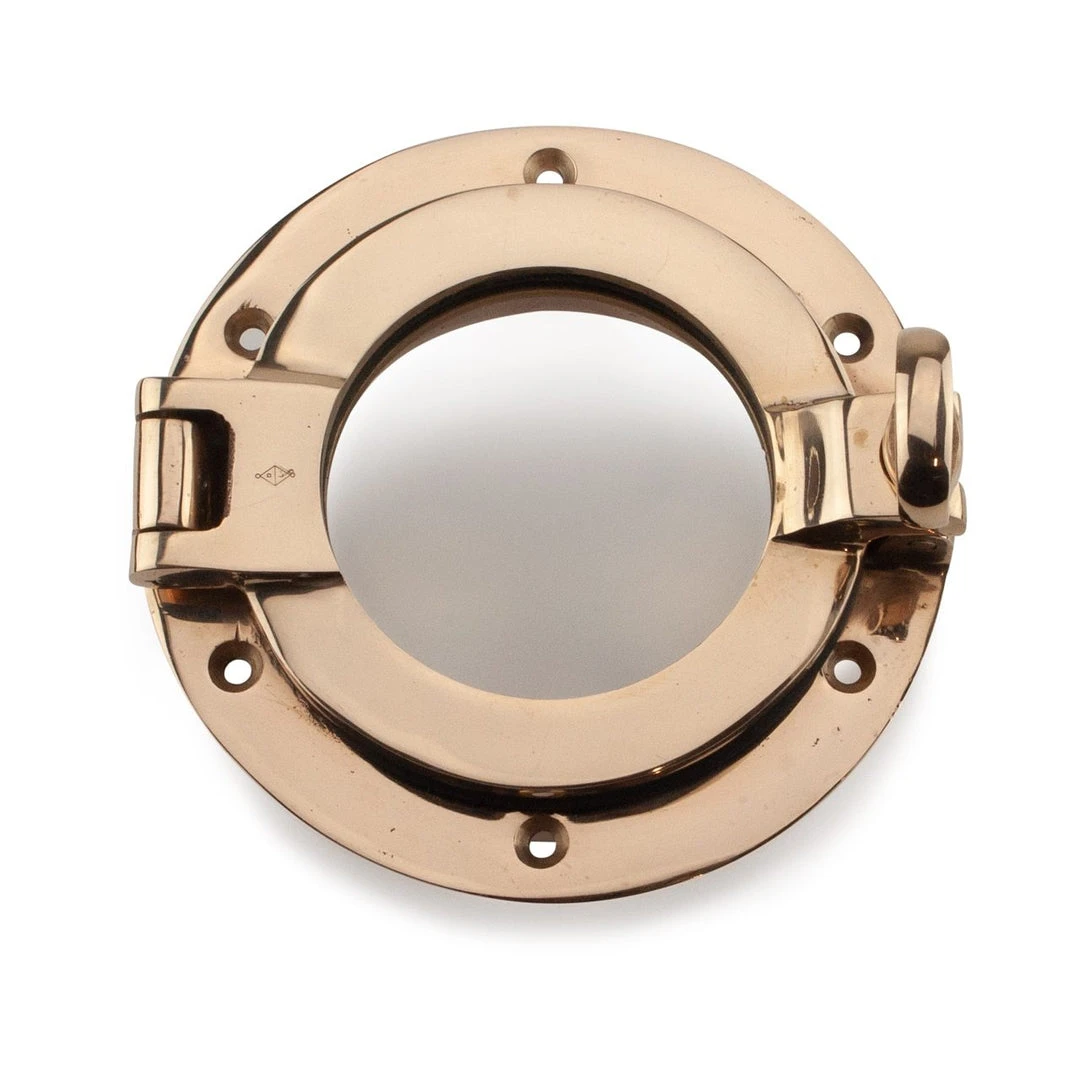

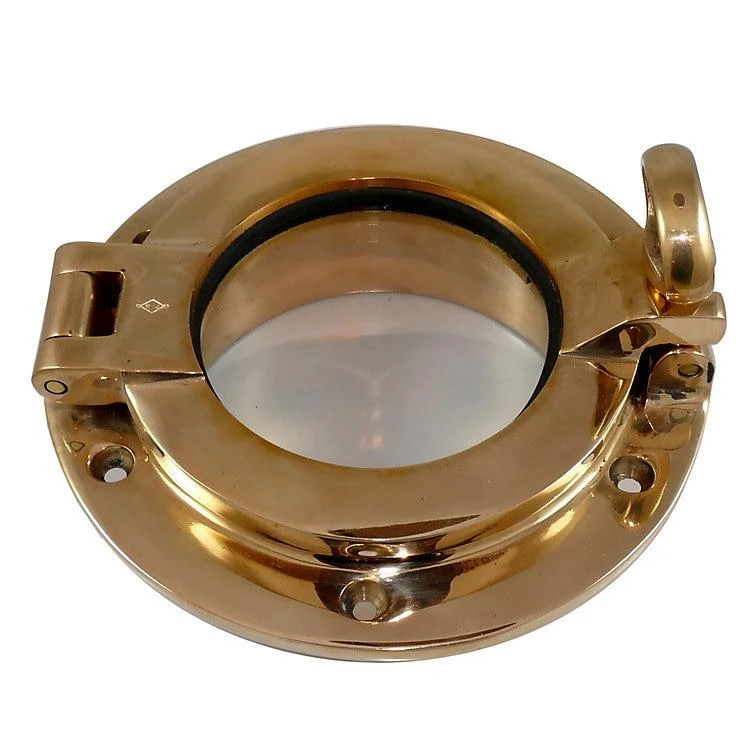

Polished Bronze Portlights
These heavy duty Davey portlights are traditionally hand made in England to the highest quality and CE approved for upper hull areas and cabin sides. Supplied with outside finishing rings and fitted with toughened glass with a polished finish.
Beautiful, heavy duty Davey portlights are hand made in England to the highest quality and are CE approved for upper hull areas and cabin sides.
Supplied with outside finishing rings, they are fitted with toughened glass and have a polished finish.

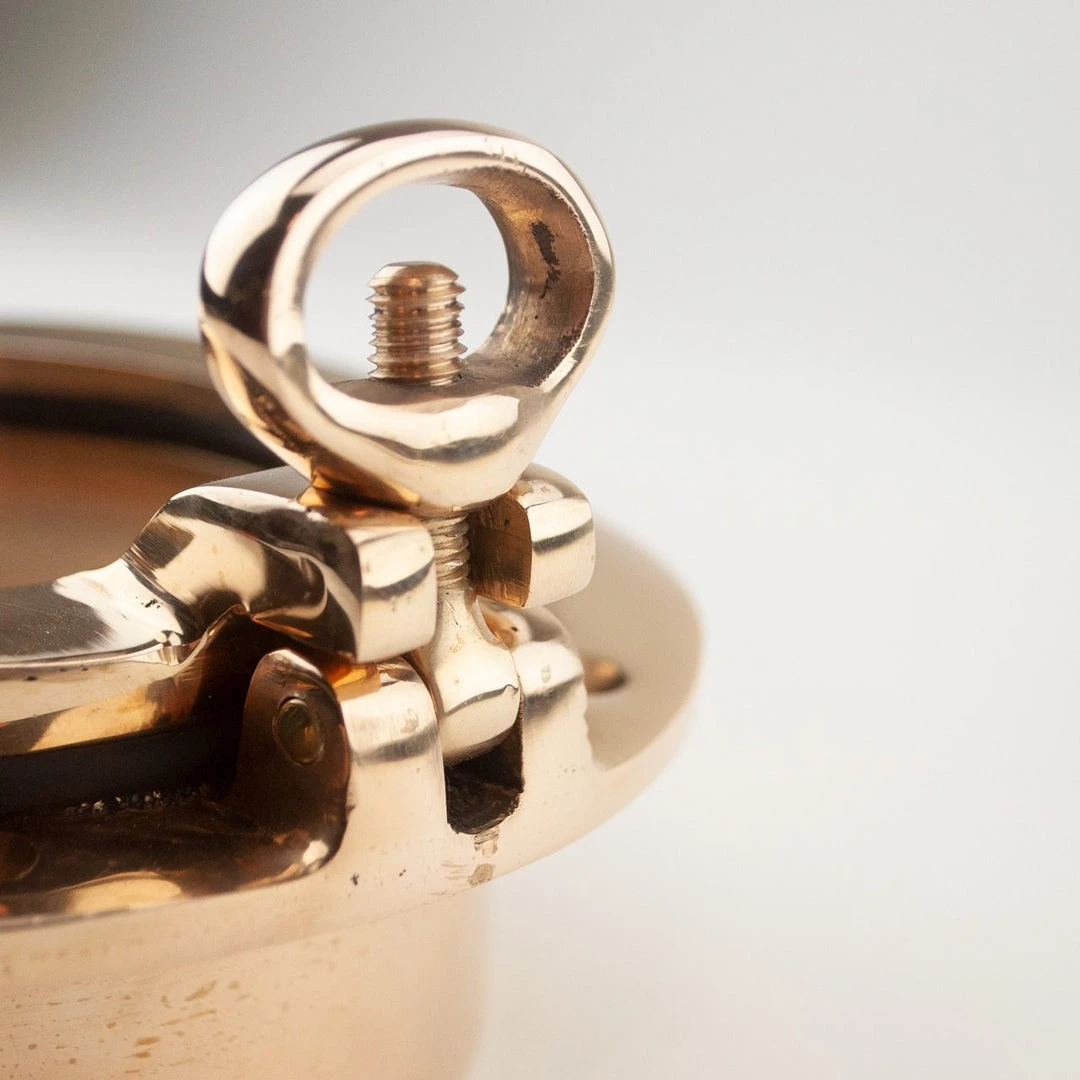

The 8” round opening and all three oval opening portlights have two closures for additional security.
|
Bronze |
Glass Diameter |
Flange Diameter |
Spigot Diameter |
Spigot Depth |
|
3035/GM/080 |
31‚ÅÑ4” 84mm |
6″ 150mm |
43‚ÅÑ8” 112mm |
11‚ÅÑ2” 38mm |
|
3035/GM/100 |
4″ 100mm |
61‚ÅÑ2” 170mm |
51‚ÅÑ4” 134mm |
13‚ÅÑ8” 34mm |
|
3035/GM/125 |
5″ 125mm |
73‚ÅÑ4” 195mm |
53‚ÅÑ4” 146mm |
13‚ÅÑ4” 44mm |
|
3035/GM/150 |
6″ 150mm |
91‚ÅÑ16” 230mm |
67‚ÅÑ8” 175mm |
13‚ÅÑ4” 44mm |
|
3035/GM/200 |
8″ 200mm |
12″ 310mm |
10″ 250mm |
2″ 52mm |
Chrome plate finish and reduced spigot lengths are available to special order. 12” opening available to special order.
